Compact Air Meter

£325.00£545.00

The Compact Air Meter range from Sensing Precision Limited includes four standalone handheld instruments. Two differential pressure instruments, the DP02 (0-±500Pa) and the DP10 (0-±2500Pa), and two ambient conditions instruments, the BP32 (Barometer, Temperature and Humidity) and the TH60 (Temperature & Humidity). Each of our Compact Air Meter instruments is supplied with UKAS traceable calibration and a clam shell protective case. The DP02 and DP10 also have the option of upgrading to a larger hard plastic carry case which includes a 300mm x 8mm Pitot Tube manufactured by Sensing Precision Ltd.

The Compact Air Meter range from Sensing Precision Limited includes four standalone handheld instruments. Two differential pressure instruments, the DP02 (0-±500Pa) and the DP10 (0-±2500Pa), and two ambient conditions instruments, the BP32 (Barometer, Temperature and Humidity) and the TH60 (Temperature & Humidity). Each of our Compact Air Meter instruments is supplied with UKAS traceable calibration and a clam shell protective case.

The CAM range of instruments utilise ultra high accuracy sensors and can operate on a single 9V PP3 battery for over 50 hours or can be powered directly from the USB port. Each instrument is equipped with a memory chip for high volume data logging and data logs can be read direct to the LCD and output via the USB with the use of serial terminal program such Putty.

On the DP02 and DP10 instruments, the large LCD displays primary measurement as well as well duct area and correction factor. On the BP32 and TH60 instrument, the LCD displays the primary measurement and a secondary measurement. Each instrument also shows the average for the primary measurement and the current log count.

Key Features of the CAM Range

BP32 & TH60
Measure Barometer (BP32 Only)
Measure Temperature
Measure Humidity
Calculate Dew Point

DP02 & DP10
Measure Differential Pressure
Calculate Velocity
Calculate Volume Flow
Enter K-Factor (Multiplication Factor)
Enter Duct Area
Enter Ambient Temperature and Barometric Pressure
Adjustable Sensor Damping (1 to 32 Second Averaging)

DP02, DP10, TH60 & BP32
Adjustable Screen Brightness
On Board Real Time Clock with Calendar
Over 50 Hours of battery life from a standard 9V battery.
Battery Level Indicator
Built in Battery Saver Option
USB Connectivity & Power From USB
Durable Enclosure with Soft Grip Sides.

DP02 / DP10
Pressure Range – DP02 ± 500 Pa ± 2inwg
Pressure Range – DP10 ± 2500 Pa ± 10inwg
Accuracy – DP02 0.5% of Reading (±1 digit)
Accuracy – DP10 1% of Reading (±1 digit)
Resolution – DP02 0.01 Pa (upto 300Pa), 1Pa (above 300Pa)
Resolution – DP10 1 Pa
Sensor Damping 0.5s – 32s
Units – Pressure Pa “wg
Units – Flow l/s m³/h m³/s cfm
Units – Velocity m/s ft/min
Flow / Velocity Format Actual or STD Conditions

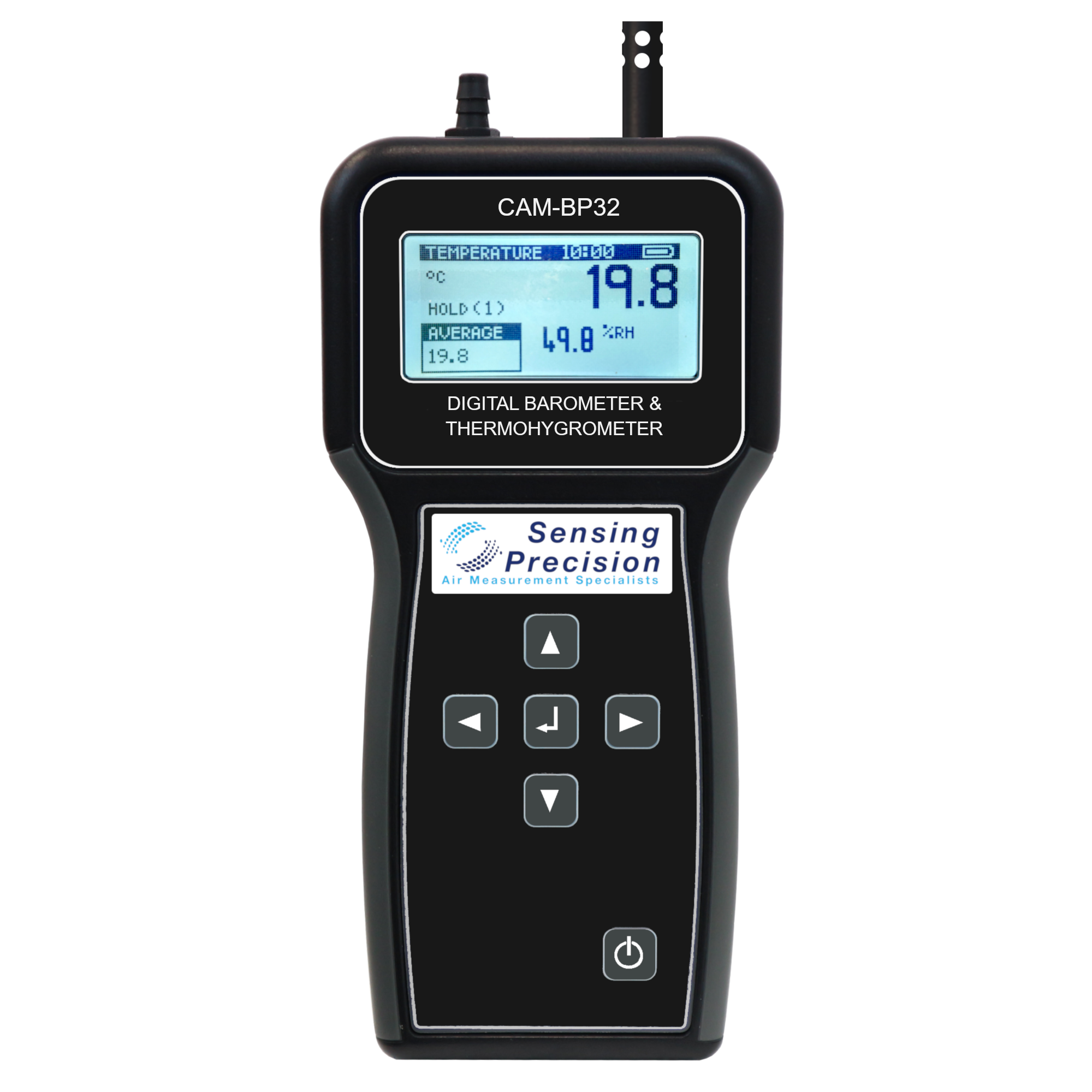

BP32
Barometer Range 600 – 1100 hPa
Barometer Accuracy 600 – 1100 hPa
BP32 / TH60
Temperature Range 0 – 60°C
Temperature Accuracy ±0.25°C
Temperature Response 2s
Humidity Range 5 – 95%RH°C
Humidity Accuracy ±3%RH
Humidity Response 8s
Dew Point Accuracy ±0.5% Calculated
General
Power +9V Battery / +5V USB
Battery Life 50+ Hours
Battery Level Indicator Yes
Data Logging – DP02/10 300 Logs / 98 Points
Data Logging – BP32 300 Logs / 32 Points
Data Logging – TH60 300 Logs / 49 Points
Serial Data Ouptut Yes
Length 173mm
Width 80mm

HVAC commissioning
Testing & Balancing
Pitot Tube Duct Traverse
Static Pressure Monitoring
Filters, Coils, Fans & Diffuser Performance Monitoring
