X-Grids

£205.00£360.00

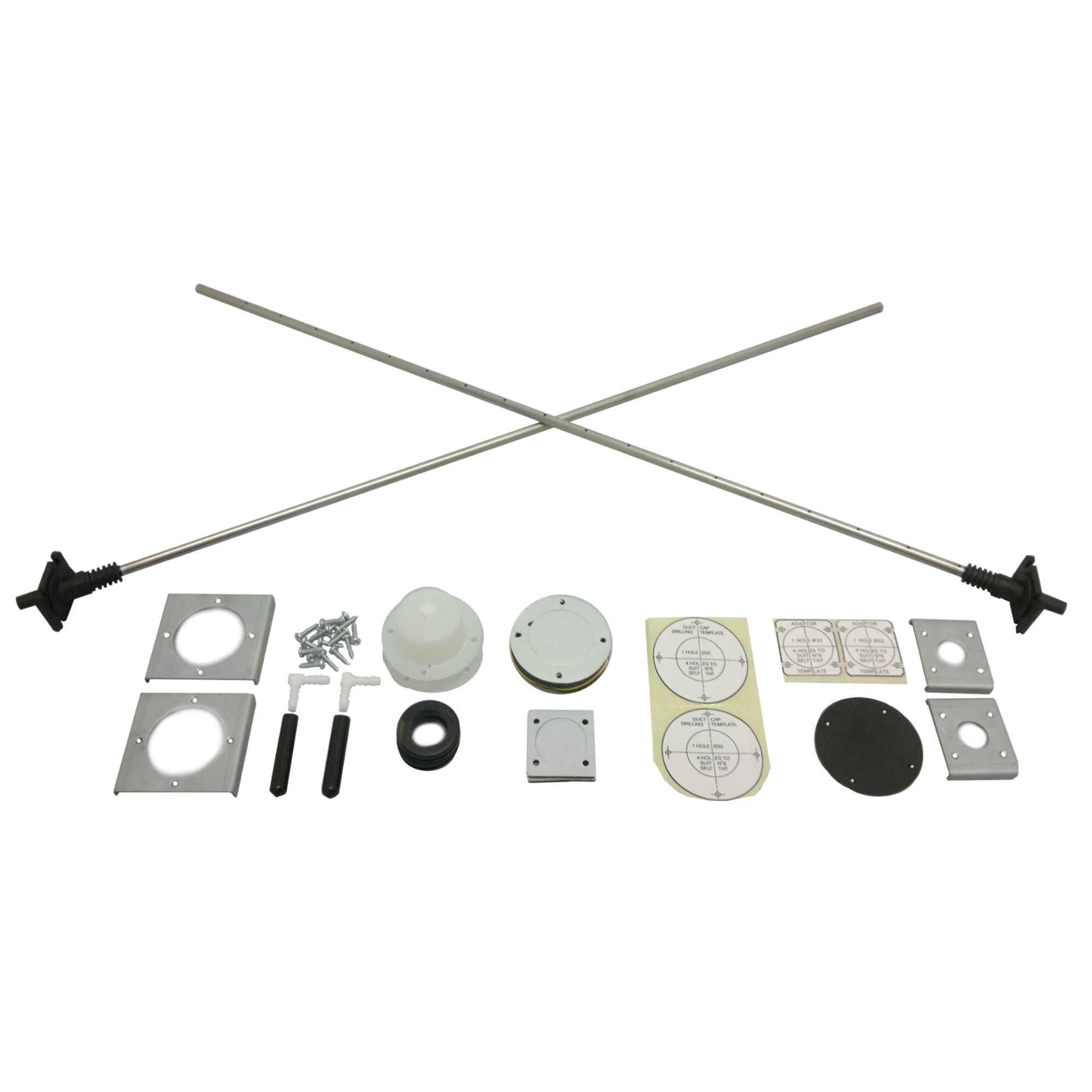

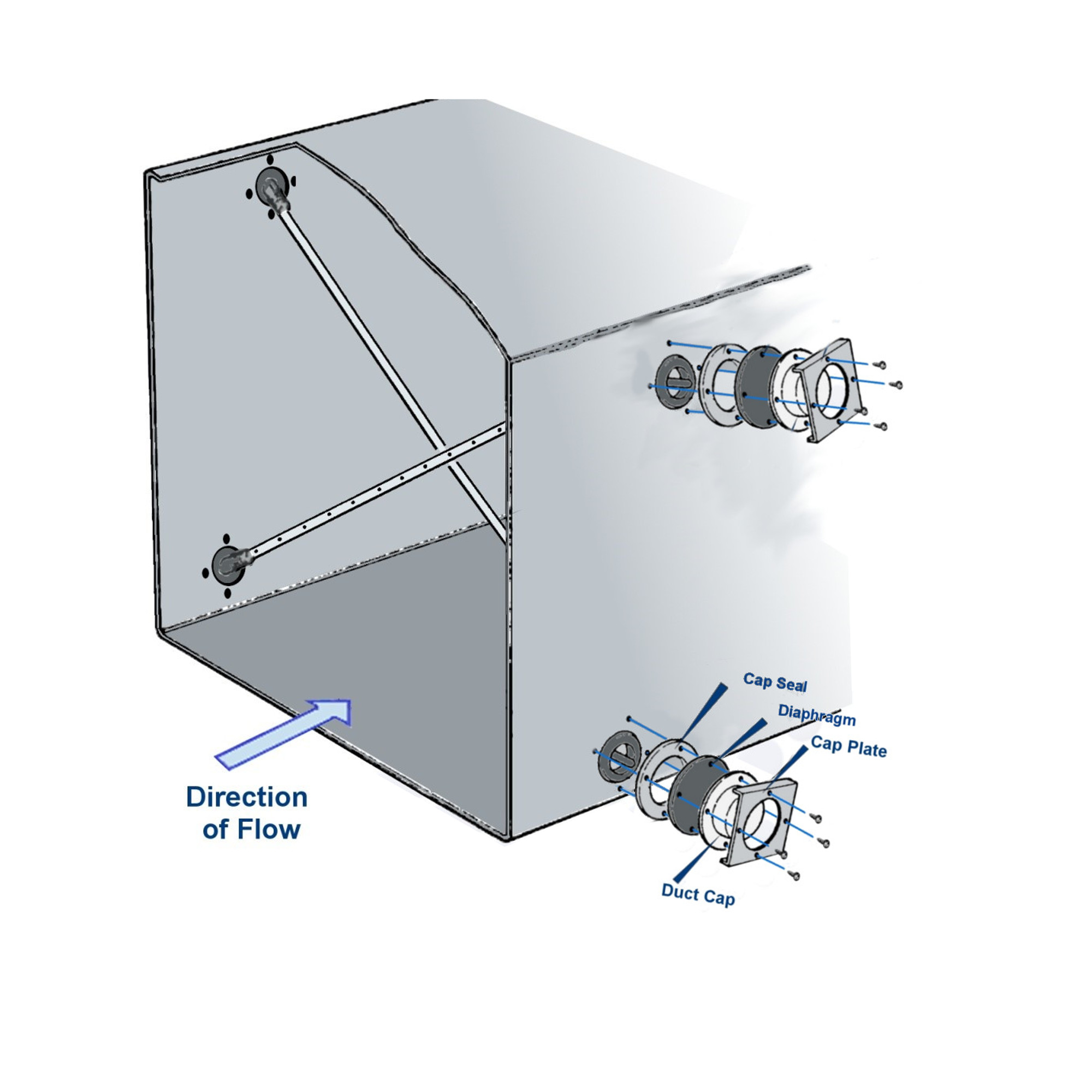

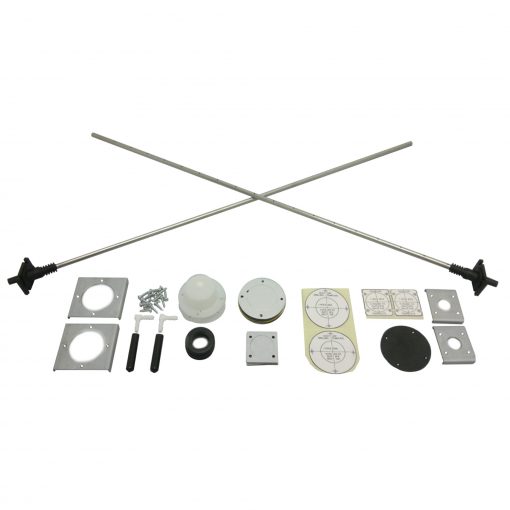

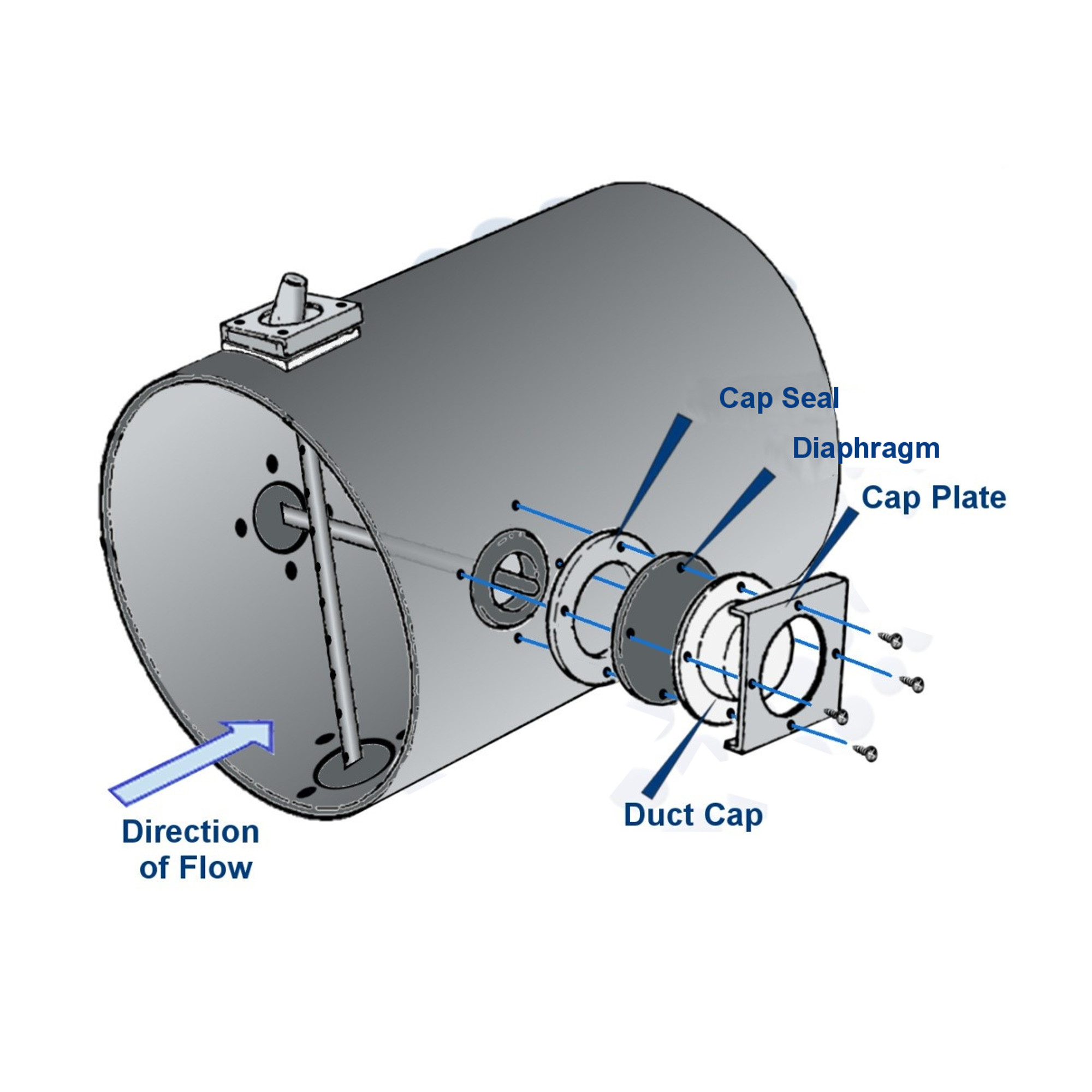

X-Grids consist of two tubes mounted diagonally through the cross section of a duct and are easy to install and maintain. The holes in the first tube face upstream (Total Pressure), whilst those in the second tube face downstream (Sub-Static Pressure).

The UX model has a Magnification Factor of ~1

The MX model has a Magnification Factor >1.8

SKU: N/A Categories: , Tags: ,

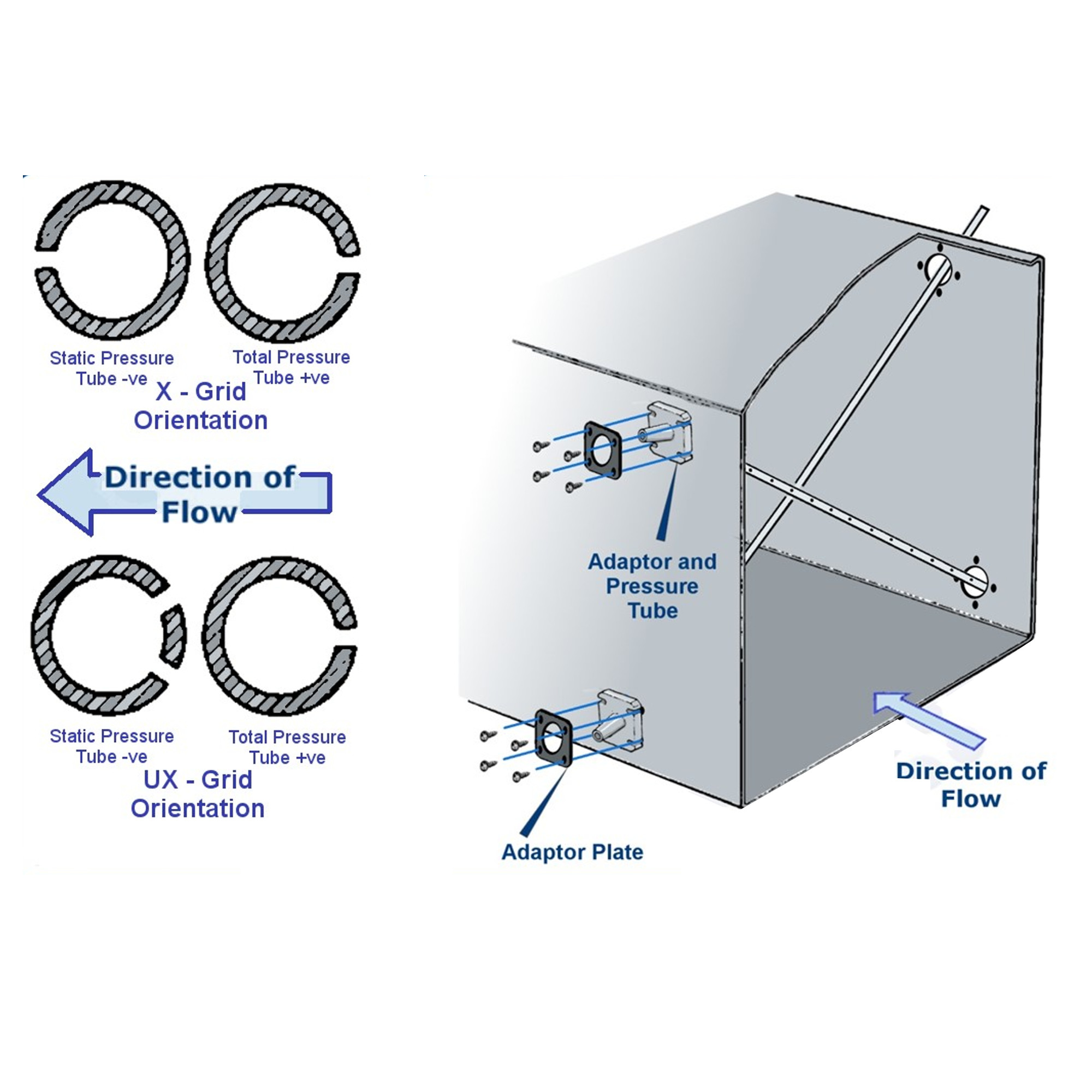

X-Grids consist of two tubes mounted diagonally through the cross section of a duct and are easy to install and maintain. The holes in the first tube face upstream (Total Pressure), whilst those in the second tube face downstream (Sub-Static Pressure). The holes in the second tube of the UX-Grids also face forward but at an included angle. In both cases, these tubes generate an averaged signal to generate a differential pressure signal that directly relates to volume flow. Standard Performance Data is available.

Key Features Of Our X & UX Grids
Available in:
8mm Dia Tube (MX8)
16mm Dia Tube (MX16)
Fixed Length Allows On-Site Modification to suit Duct Size.
Economical Alternative to Wilson Flowgrids.
Quick & Easy to Install.
Suitable for Most Duct Locations.

Specification
Standard Sizes Available ø8mm – up to 715mm diagonal & 680mm Dia.
ø16mm – up to 1534mm diagonal & 1510mm Dia.
Uncertainty of Flow Measurement ±5.0% (can be obtained)
Pressure Measurement Range ± 2500 Pa
Magnification Factor (M) X-Grid – approx. 1.8
UX – Grid – approx. 1
Versions Available Standard and High Temperature Systems
Temperature Range Standard up to 80°C – High Temperature up to 850°C (680°C continuous)
Materials Stainless steel Grade BS3605 321 S18 tube supplied as standard also PVC, Polyurethane, Acetal plastics & Neoprene rubber./td>
Special Systems Bespoke systems manufactured to meet Customer specification

Velocity Measurement
Volume Flow Measurement
